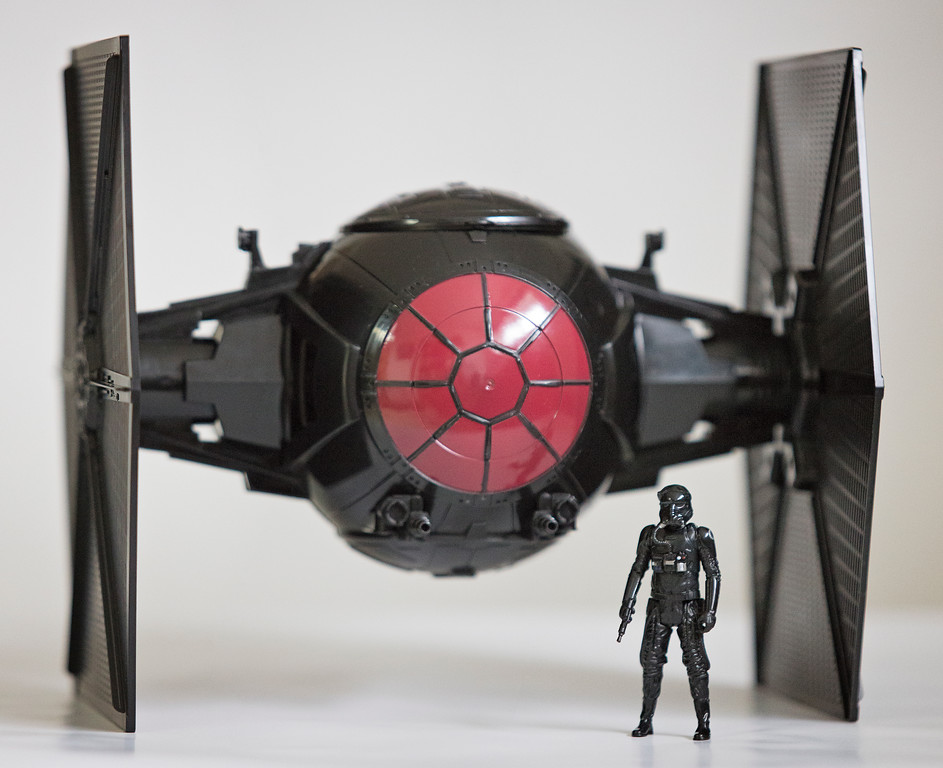

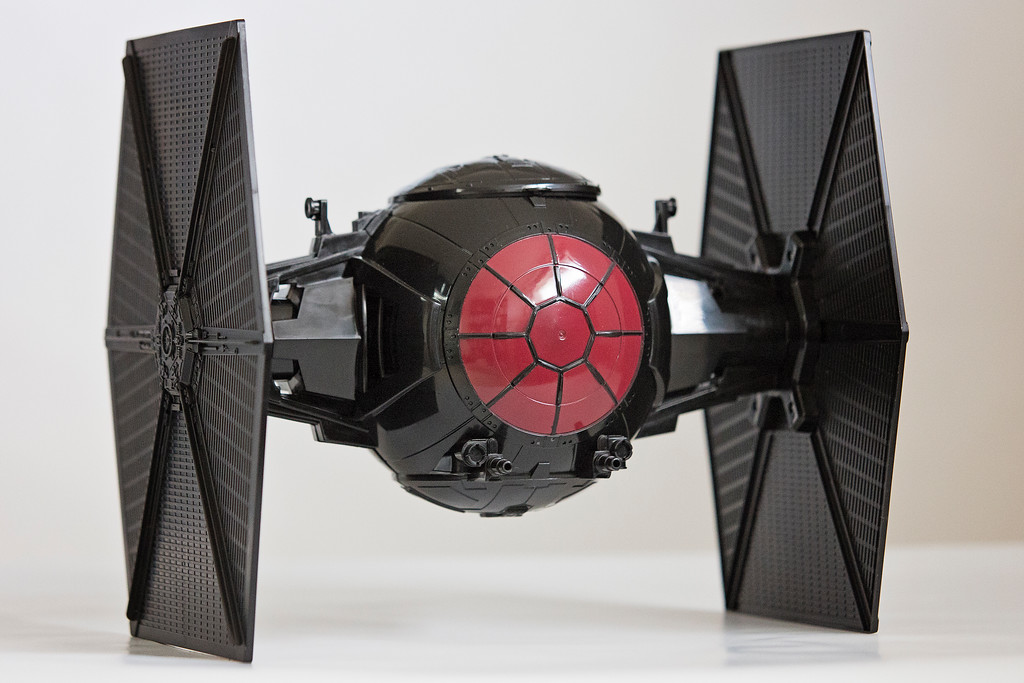

A co-worker recently came back from Disneyland and gave me a plastic Star Wars Tie Fighter popcorn bucket that she had purchased. With Worldwide Pinhole Day coming up on April 30th, I thought how cool it would it be to turn this Tie Fighter into a pinhole camera. Now, it’s not as much of a pinhole camera itself as it is a pinhole camera holder. Deep inside the Tie Fighter is a cardboard Sharan 35mm pinhole camera.
The Tie Fighter comes apart in four pieces. The wings come off the center Command Pod which is held together with 6 screws. After taking the Tie Fighter apart, I cut out the hexagon shape (Solar Ionizer Reactor) on the back for the pinhole. My initial plan was to cannibalize parts from a few other pinhole kits, but then decided it would be easier to mount a camera inside. This way I wouldn’t need to modify the Tie Fighter, but know that a camera from a kit worked.
I assembled a Sharan STD-35e pinhole camera that I had purchased a few years ago. The cardboard is pre-cut, sturdy, and the instructions are easy to follow. To make sure the pinhole of the Sharan lines up with the opening on the back of the Tie Fighter, I placed two round Velcro patches on the left and right-hand sides of the camera. And to make sure that the camera doesn’t move, or pop open, I placed a Velcro strap horizontally along the back of the camera. The Sharan fits snug and perfect inside the Tie Fighter, ready to take on any member of the Rebel fleet!

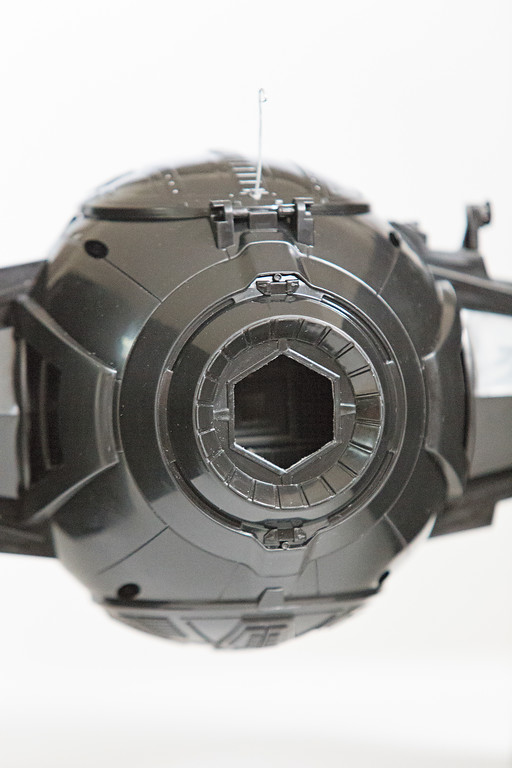

To trigger the shutter, I drilled a small hole in the top of the Tie Fighter and attached a paperclip to the cardboard shutter that covers the pinhole. With the top hatch of the pod closed, the paperclip can be pulled up to let the light pass through the pinhole and expose the film. Because the camera is slightly recessed inside the Tie Fighter, the hexagon shape should create the similar shape on the exposed images adding to the uniqueness.
Advancing the film is done by opening the top hatch of the pod and turning the take-up spool counterclockwise. Loading the film and camera into the pod is not easy. The six screws must be removed so the pod can be taken apart into two pieces. The camera can then be removed to load film, rewind film, remove film, etc.
“Oh, I’m afraid the Tie Fighter Pinhole will be quite operational for Worldwide Pinhole Day.”
- First Order Special Forces Tie Fighter
- Advance Hyperdrive Engine
- 2 x Laser Cannons – Turret – Warhead Launcher
- Two Seat – Pilot & Gunner
- Pinhole – .16mm
- Focal Length – 20mm
- F-Stop – f/130
- Film Type – 135 (35mm)
