This week we’re featuring local photographer Bob Grant and his review of the Mercury II camera. Bob found Utah Film Photography a few years ago and we’ve met up for a few photowalks. With a background in engineering, Bob loves the technical details, mechanics, and operation behind film photography. He admits his artistic and technical interests go hand-in-hand, and they tend to compliment each other.
Well, this certainly isn’t the best of times. And pandemic concerns recently prevented me from exploring any city other than my own.
And for anyone who enjoys travel photography, an unexpected 10-week long stay at home spells out “missed opportunities” in bold letters.
But photography continues. I’ve added greatly to my old film camera collection within the past two years, and I have a number of gems that until 10 weeks ago I had not yet put any film in. So I suddenly saw a golden opportunity to correct that by shooting my first rolls in my Contax IIIA, Voigtlander Bessamatic, Yashica D, Yashica-Mat, plus Kodak No. 2 Hawk-eye and Rexoette box cameras. Hoping for interesting photos, or at least ones that exposed the strengths and weakness of each camera, I decided to play tourist on my daily walks of 2 to 5 miles in my neighborhood. As time progressed, novel subjects, lighting, and camera angles became harder to find in such a small radius from home. But playing tourist in my own neighborhood proved to be a fun challenge to my creativity.
In retrospect, selecting my recently acquired Mercury II with an 35mm F2.7 Tricor lens for its tour of duty at this time may have pushed this challenge a tad too far into the deep end of the pool. Because the Mercury II is my first half-frame 35mm camera, and I hadn’t fully anticipated how long it might take me to shoot the full complement of 65 images within walking distance of my home.
Briefly, the Mercury II is a uniquely shaped post-war American 35mm camera.
Anyone interested in the technical details can easily find it on the internet search for “Mercury II camera”. Mike Eckman Dot Com gives a much better description than I possibly can.
Amazing things about this camera include:
The bump on the top houses a rotating disc that serves as the focal plane shutter. At each shutter speed, from 1/20 to 1/1000, the disc rotates at the same speed, and always emits the same lazy whirl. The exposure is varied by changing the size of the pie-shaped opening formed by the two over-lapping “half discs”. It is unquestionably the most accurate mechanical shutter in my camera collection, and is as precise throughout its whole range as I can measure with my simple shutter tester, challenging some of my electronic shutters.

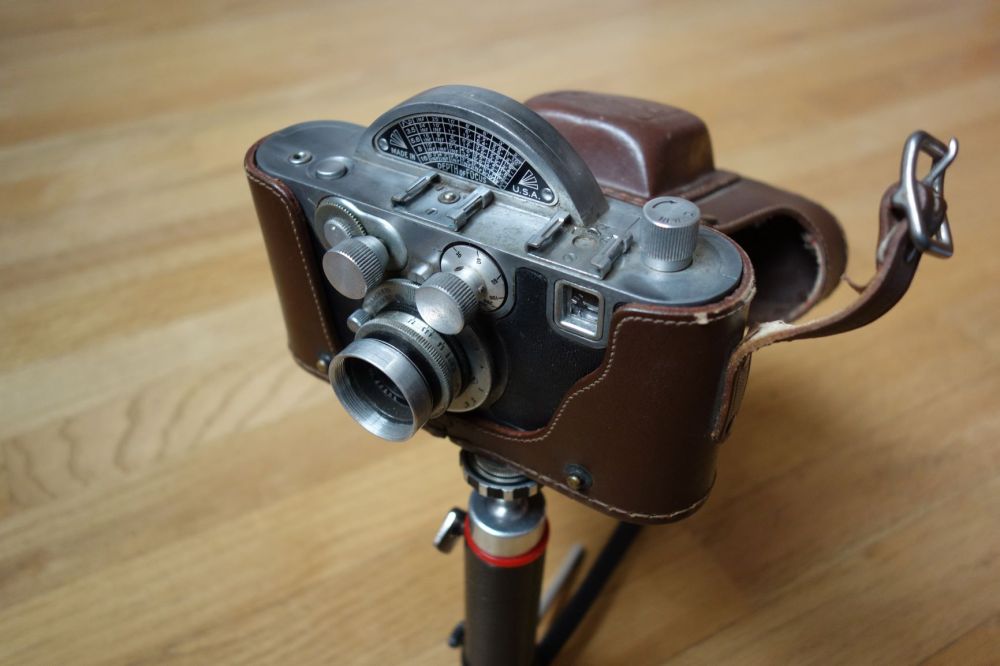

The exterior metal surfaces were not plated. They now have an intriguing patina. Okay, it’s actually a tarnish that you can see in the first photo. But the tarnish shows graphically where the operators’ fingers have smoothened the metal’s surface finish and additionally darkened it over the years. Judging by this, this camera has apparently seen heavy use, yet maintained its accuracy. I guess I can’t rule out that the original owner had excessively hard, dry and abrasive skin.
The owner’s manual has a description of the exposure calculator, on the camera’s back, but it is so complex that I couldn’t find any reason to read past the first paragraph or two, when “Sunny 16” answered my needs. A fringe benefit of living in Utah: substantial sun compared to where this camera was designed – NYC.
Left to right in the foreground above are:
- The extinction light meter that came with the camera (useless, maybe due to darkening with age);
- Saymont rangefinder attachment, unrelated to this camera but a useful accessory; This is a viewfinder, not a rangefinder. Distance is by guesstimate, but I happen to have this era-appropriate accessory rangefinder, which I also found fun to use.
- Kodalux light meter, obviously unrelated and with limited functionality, mostly to confirm “Sunny 16”.
Annoying things about this camera:
The half-frame images are pretty small, magnifying any image imperfection and requiring manual framing of each image when using my Epson V550 film scanner. When the camera is horizontal, the image is in portrait orientation. It is easy to grip and hold vertically for a landscape, so I didn’t find this to be a problem. Until I saw the photos. Many of them were skewed. I obviously had a hard time holding the camera level, in either configuration. Will you let me blame the tiny viewfinder, which is vignetted for anyone wearing glasses? I actually can’t get my eyeball close enough to see the edges of the viewing frame.
It takes 4 repeated twisting motions for me to wind the film and cock the shutter. If this was a full-frame camera, I’d have to pre-schedule each film advance on my monthly calendar.
The film advance on my camera has aged a lot faster than the shutter. One film sprocket hole was torn mid-roll, several exposures slightly overlapped, and the last 8 to 10 exposures were blank, with one frame showing multiple exposures despite the expected tension signaling that I had properly reached the end of the roll, and the shutter appeared to have never missed a beat. I respect any camera that presents me with a mysterious failing such as this. I wonder now if the advance knob stops when it reaches frame number 65, even if the film stopped advancing sooner. I’d have to wind it 65 times just to find out. 65 x 4 =260 twists. Never mind.
The top of the leather case folds up, over, and back toward the user, preventing them from getting an eye within 4 inches of the viewfinder. Perhaps it is because the leather is now so hard and stiff that it won’t drop out of the way. I decided to just remove the case while I had film in the camera – the first time I’ve ever felt obliged to operate any camera without its case.
So – how good are the pictures? First let me explain. I find it hard to believe, but I checked the math, and I really did make my first photographic equipment purchase (Crown Graphic 4×5 and Omega DII enlarger) 49 years ago, while still in high school. I have a fair amount of amateur darkroom experience. However, now my favorite way to view my photos is using my 4K TV, so now my old amateurish ways of judging analog input/analog output image quality no longer apply to me, and keep in mind that my new amateurish analog input/digital output methods do not always satisfy me, and might not appeal to you, either. This has always been only one of several hobbies that are enjoyable for my own entertainment, but I’ve never sought to totally master.
I shot Ilford FP4+ with standard developing time. I used no filters – none of mine fit this small lens. Most outdoor shots were handheld, usually taken at 1/100 and F16 or F8.
These subjects aren’t particularly interesting, but were primarily selected to judge the camera’s capabilities. One, but only one, image on this roll gave me the image definition evocative of my what I love about my Zeiss and Voigtlander cameras from the ’50’s and ’60’s. At least it wouldn’t stand out if grouped with those images – when viewed on my TV. All of the others would fall short.
So I know beautiful photos are somewhere within this camera’s capabilities, but I couldn’t find all too many with my first roll of film. The small image size is a big disadvantage. Every speck of dust or blemish is twice as big as full-frame 35mm. All of these images are scanned at 3200 dpi (but downsized for this publication) with Epson’s lowest USM setting, and no post processing and no digital dust removal. Kinda raw.
Can anyone identify what caused the circled flaws in this image, and how to avoid them? Other than, of course, not shooting a 3/4″ x 1″ negatives while a 4″ x 5″ camera sits unused at home. 🙂 I don’t remember it ever having been a problem for me before, so I guess it is a processing flaw that has previously gone un-noticed with less magnification. You will see more examples in other shots.
Middle-lane Social Distancing for Teens
Outer-lane Social Distancing for Adults
Stay-at-Home Social Distancing for Boomers
These cameras are said to have a good depth of field due to their small images, so I took this picture to get a sense of it.
The camera can focus as close as 1′ 6″. This was taken a little further than that, but as close as I could get due to standing in a ditch.
Tennis Court Shadow
Sno-Cat
I cannot quite count the number of plies in the rubber belt of this cat-track, which I interpret as pretty good.
Snuggle Bench During a Pandemic However, nothing looks very sharp.
I’ve started shooting very rudimentary resolution test shots of all my cameras, with similar lighting and always tripod mounted. My methodology still has many flaws, but this suggests to me that this lens is average – comparable to my Canon 50mm FD, but better than my Canon zoom lenses with FD mounts.
